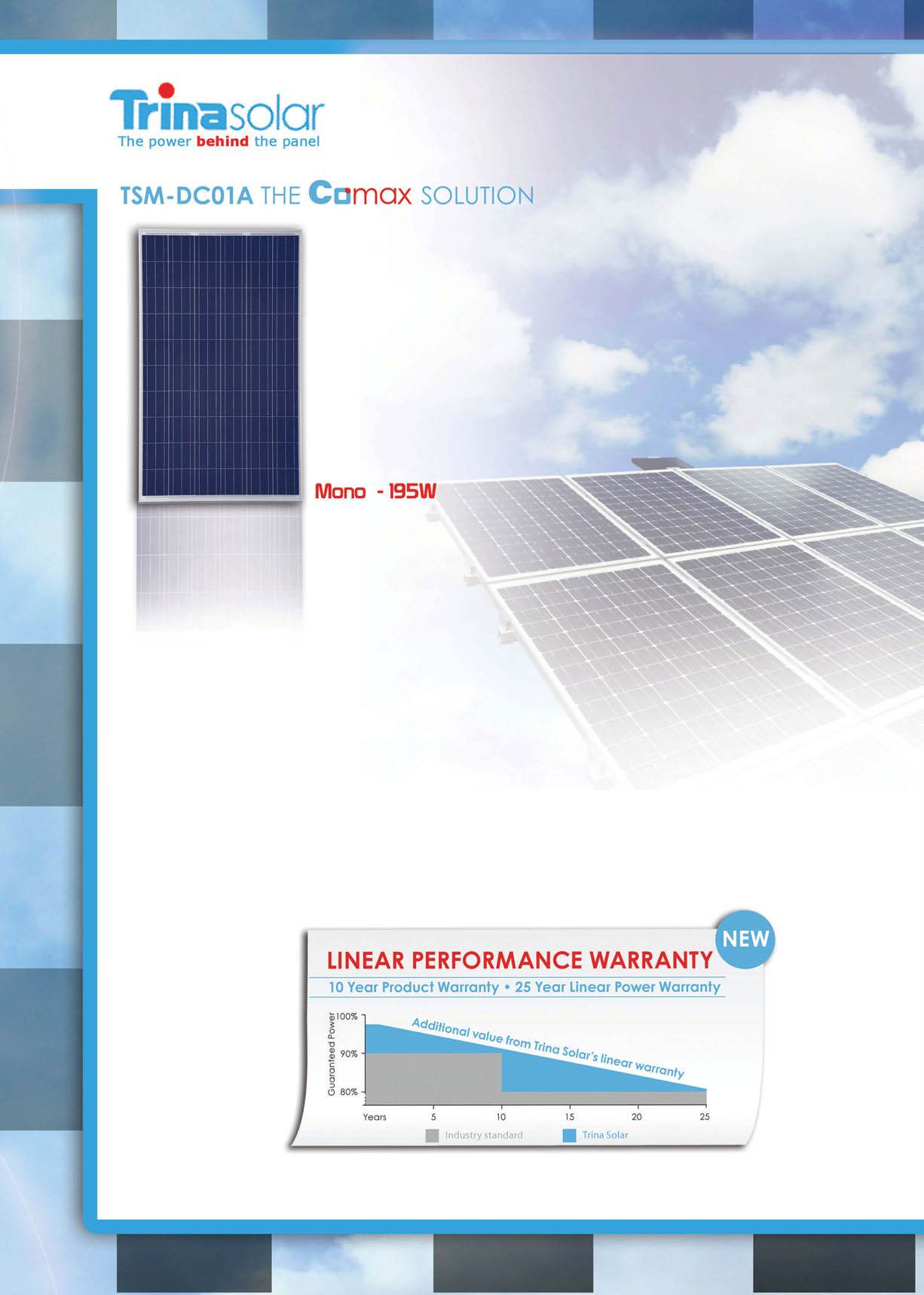

TSM-195DC01A - Solar Panel
15.2%
Max Efficiency
195W
Max Power Output
10 Year
Product Warranty
25 Year
Linear Power Waranty
The optimised corners of the cells used in our TSM-DA01A
enlarge the module’s energy generating surface by 4.2%.
Additionally, each cell now has 54 gridlines on the top surface,
which improves energy flow. Through these improvements, this
module now generates up to 195W. It is the perfect size for
residential and small commercial installations.
Electrical Data
TSM-195DC01A
Peak Power Watts-P
max
(WP)
195
Maximum Power Voltage (V)
37.1
Maximum Power Current (A)
5.25
Open Circuit Voltage (V)
45.6
Short Circuit Current (A)
5.56
Mechanical Data
Solar cells
Monocrystalline 125 x 125mm (5 inches)
Cell orientation
72 cells (6 x 12)
Module dimension
1581 x 809 x 40mm
Temperature Ratings
Nominal Operating Cell Temperature (NOCT)
46°C (±2°C)
Max Series Fuse Rating
10A
Mono
Subject to its terms and conditions, our Limited Manufacturer’s Warranty for Trina Solar SPV Modules
guarantees to our customers up to 10-year product warranty for materials and workmanship and a 25-year
linear power warranty.
Note:
•
For Polycrystalline Products: 2.5% in the first year, thereafter 0.7% per year, ending with 80.7% in the 25th year
after the Warranty Start Date
•
For Monocrystalline Products: 3.5% in the first year, thereafter 0.68% per year, ending with 80.18% in the 25th year
after the Warranty Start Date
