In the heart of a thriving wildlife corridor near South Africa's Sabie River, a bold vision for a luxury villa development bordering the Kruger National Park is taking shape. Nestled along a historically active dry waterway that converges with the Sabie River, this project poses a unique engineering challenge: creating world-class infrastructure while preserving the delicate ecological balance of this biodiverse region. By Fanie Joubert Pr Eng, Head of Civil Structural & Eco-Engineering.
The seemingly benign dry riverbed transforms into a formidable force during seasonal floods, reshaping the landscape with powerful erosive energy. Flowing southward at an angle of approximately 70 degrees towards the Sabie River, the watercourse makes a sharp westward turn of 60 degrees before executing a tight 10 m radius bend.
This geological pinch point is notorious for accelerating water velocity and intensifying erosive forces. Approximately 100 m downstream, the riverbed veers southward again with a dramatic 90 degree turn, creating a rectangular development zone of about 80 by 100 m, bounded by the riparian zones of the Sabie River and the dry riverbed.
Flooding events have left their marks on the landscape, with the steep, vertical faces of the outside embankment testifying to the
water’s relentless force. The uprooted trees scattered across the area are evidence of past
hydrological violence. Among the survivors are two majestic Jackalberry trees (Diospyros mespiliformis), precariously leaning towards the riverbed, their root systems compromised by erosion and threatened with imminent collapse during the next flood event. The loss of these iconic trees would not only be an ecological tragedy, but also a significant aesthetic loss for the estate.
A harmonious engineering solution
To address this complex challenge, a gabion structure emerged as the optimal solution. This innovative approach, combining structural integrity with environmental sensitivity, aimed to stabilise the embankment, protect the
existing vegetation, and safeguard future developments. Gabions, with their interlocking mesh filled with carefully selected stones, offer a durable and aesthetically pleasing solution that blends seamlessly with the natural environment, while delivering long-lasting performance.
Technical execution and collaboration
The project's success was ensured through collaboration between industry leaders, namely:
- Project engineer: Stefan Triegaardt of Consolv Consulting Engineers
- Design engineer: Fanie Joubert from Civil
- Structural & Eco-Engineering
- Construction specialist: Gabion Guru, and
- Project manager: Mike Gillard
Together they ensured that the final design met both engineering and ecological objectives, especially in terms of preserving the Jackalberry trees, which were safeguarded by the design.
Beyond the structure: A holistic approach
The project extended beyond the construction of the gabion wall. To minimise disturbance to the environment, a detailed survey was conducted to identify the most favourable alignment for the structure. In collaboration with the client, the decision was made to cover as much of the gabion structure with topsoil as possible, further integrating the structure into the natural landscape.
The gabion wall design was tailored to address both immediate and long-term challenges.

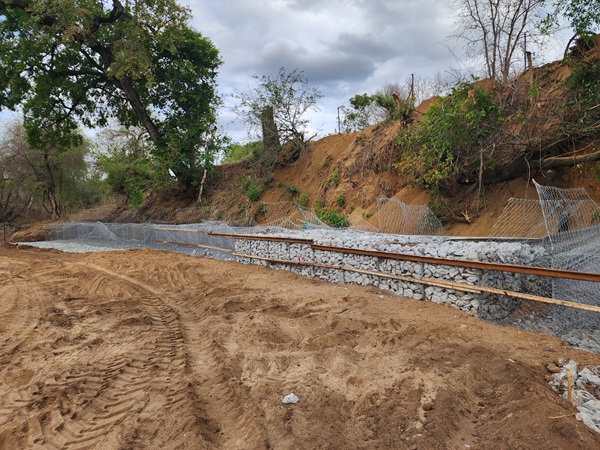

Spanning 50 m in length and consisting of three layers, each 1 m high, the structure was carefully aligned to match the 1:100-year flood level. The foundation comprised a 300 mm deep gabion mattress extending 3 m from the front of the base layer, made of 2 m by 1 m gabions. Each successive layer, stepped back by 500 mm, created a stable and aesthetically pleasing terraced effect.
By projecting outwards, the gabion mattress acts as a protective barrier that disperses the force of incoming water flow, reducing its velocity and minimising the erosive impact on the soil directly beneath the main structure. This strategic placement helps to prevent the undermining of the foundation.
The vertical backside of the structure was fortified with geotextile fabric, a critical component for preventing soil erosion while allowing water permeability, reducing the hydrostatic force of water behind the gabion wall and thereby ensuring its stability. Behind the wall, the filled area was graded to a maximum slope of 1:1.5 to avoid creating steep, vulnerable inclines. Topsoil, carefully preserved during the excavation phase, was used to cover the filled area and promote vegetation regrowth.
To further protect the soil and encourage plant growth, a layer of SoilSaver was applied.
This innovative biodegradable erosion control blanket naturally decomposes within one to three years, leaving minimal environmental impact. It creates a protective layer that reduces soil movement and water runoff, provides a stable microclimate that encourages seed germination and plant growth, and helps maintain moisture in the soil, supporting initial plant establishment.
A testament to sustainable engineering
Now completed, this project serves as a model for sustainable development, demonstrating how thoughtful engineering can harmonise human needs with ecological imperatives. The gabion wall becomes more than a structural element – it is a narrative of respect, resilience, and responsible construction.
The success of this initiative also underscores the potential of gabion technology as a versatile solution in addressing complex
challenges in environmentally sensitive regions. As climate change exacerbates weather extremes and increases the frequency of flooding, such innovative approaches will become increasingly critical.
