CINCON is a globally recognised manufacturer of power supply solutions. In its catalogue, TME features a wide range of products supplied by CINCON, including the CHB series of dc/dc converters.

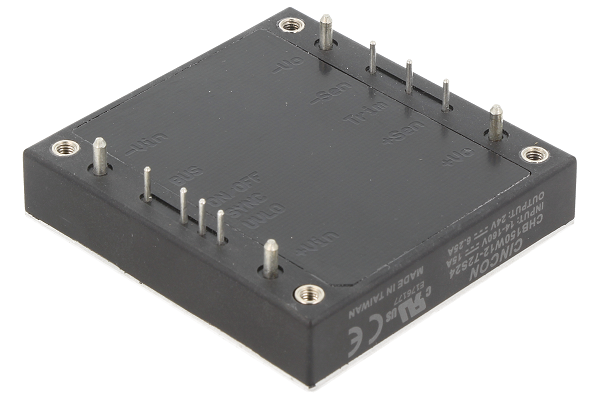

CINCON’s dc/dc converter: CHB150W12-72S24.
The CHB converters are available in a range of power ratings, from 50 W up to 350 W. They are designed for THT (through-hole technology) mounting. Body dimensions vary between 57.9 x 61 x 12.7 mm and 57.9 x 61 x 13.2 mm. The units are fitted with all key protections, such as: over voltage protection (OVP), short circuit protection (SCP) and over temperature protection (OTP). They have an operating temperature from -40°C to 100°C.
Input voltage for the CHB series of converters ranges from 9 V to 425 V dc (depending on the model), usually with a 2:1 ratio between the minimum and maximum value. Output voltage can reach anything from 5 V to 48 V dc, and output current varies between 1.78 A and 70 A. The converters allow for the output voltage to be adjusted within ± 10% of the nominal value. Efficiency ranges between 82.5% and 92.5%.
CINCON’s CHB products can be applied in IT, industrial, medical and illumination systems. Due to their high efficiency, they will also serve well in electric vehicles. Some models have been manufactured in compliance with the EN5 0155 standard covering the shock and vibration requirements for railway applications. These converters can also be used in information technology systems, as they meet the requirements of the IEC/EN/UL 60950 safety standard. As the manufacturer, CINCON has sought to achieve a high level of reliability in the components. It estimates Mean Time Between Failures (MTBF) of the converters to be one million hours of operation at full load.
