Mouser Electronics, Inc. is one of the largest global distributors of semiconductors and electronic components, specialising in prototyping quantities for engineering design and new product development. In South Africa, TRX Electronics is the authorised independent representative for Mouser Electronics, providing delivery of electronic components purchased from Mouser Electronics as well as local service and support for customers.

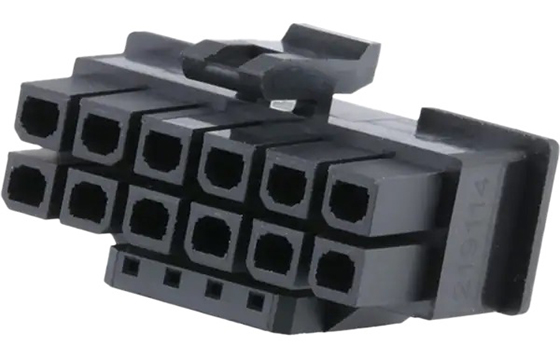

Molex Micro-Fit+ PCIe 5.0 Connectors.
Among the new products available via TRX Electronics are Infineon’s OptiMOS™ 7 Power MOSFETs, TDK’s SmartBug™ 2.0 Wireless Sensor Module MLE, and the Micro-Fit+ PCIe 5.0 Connectors from Molex.
Molex Micro-Fit+ PCIe 5.0 Connectors feature full PCIe CEM 5.0/6.0 specification compliance and support ampere interrupting capacities (AICs) up to 675 W. The connectors offer twelve power and four signal terminals with high-current metal alloy construction for hybrid power and signal integration. The Molex Micro-Fit+ PCIe 5.0 Connectors operate with a low-level 5 mΩ power terminal and 20 mΩ signal terminal contact resistance. The connectors provide fully isolated terminals and positive locking on housing with a low thumb-latch operation. They are ideal for applications in sustainable energy (solar power), telecommunications, networking, and automotive industries, among others.
Specifications
As well as 5 mΩ low-level signal contact resistance (power terminal) and 20 mΩ low-level contact resistance (terminal), the connectors offer 1 000 MΩ minimum insulation resistance, a 600 V ac/dc maximum voltage rating, 9.5 A maximum power current rating (all 12 power contacts energised), 1 A maximum signal current rating (4 signal contacts), and 1 500 V ac dielectric withstand voltage rating.
For more information visit: www.trxe.com
