The world’s first polymeric, corrosion-resistant direct-entry flameproof junction box from Pratley has been nominated for the 2024 HazardEx Awards in the category of Technical Innovation.

SAs flameproof junction box nominated for HazardEx Technical Innovation Award

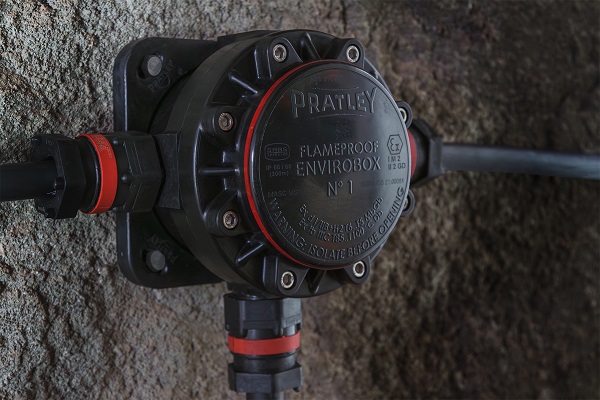

Pratley’s Flameproof Ex d Envirobox® junction box marks a major milestone for electrical installations in hazardous areas.

Eldon Kruger, Marketing Director at Pratley reports that five nominees have been shortlisted in this category, which is aimed at recognising excellence in the hazardous areas sector. The winners will be announced at the HazardEx Live 2024 Expo on 28 February 2024, in Harrogate, United Kingdom.

Launched in 2023, the Flameproof Ex d Envirobox® junction box has already received a prestigious Technical Product Innovation Award from the South African Flameproof Association (SAFA). Pratley’s Flameproof Ex d Envirobox® junction box marks a major milestone for the electrical industry in hazardous areas. Kruger describes it as a new product “unlike any other in the world”.

Flameproof equipment is designed to ensure that internal ignition within a flammable atmosphere is prevented from transmitting outside the protective enclosure. However, all traditional direct-entry flameproof junction boxes made from steel, cast iron or aluminium materials can be prone to corrosion over time when used in harsh environments.

The new Flameproof Ex d Envirobox® junction box is made from a specially formulated, robust engineering polymer and is designed to withstand severe environmental conditions. It is ideal for use in areas with a high risk of corrosion, such as offshore oil platforms, underground mines, and petrochemical plants.

The specially formulated engineering polymer is unique to Pratley. The material has exceptional mechanical properties, such as strength, stiffness, creep, dimensional stability and more. This ensures, for instance, that the junction box can withstand 2 x 20-joule impact tests in a -40°C environment. It has been third-party tested to a 4 000-kilopascal internal pressure. Additionally, it is IP66/68 certified for continuous underwater depths of up to 300 m, confirming it is water, dust, and gastight. The lid and base have an accurately machined flamepath.

The junction box can be supplied with 4 x 20 mm or 25 mm entries, or smaller on request. It can accommodate Pratley Ex d flameproof cable glands and accessories and is therefore exceptionally versatile. Each box is supplied as a standard two-way box with 2 x flameproof blanking plugs.

The internal bosses are drilled and tapped to provide an earthing point for terminal mounting rails or earth lugs. These are electrically connected to the box entries, providing complete earthing continuity.

Boxes can be fitted with an N35 terminal rail, a Pratley patented Cranked rail, an inverted Cranked rail, or Piggyback rails. Pratley Kwikblok® terminals and pre-cut lengths of cable with glands can also be factory fitted to customer requirements.

It has an optional external earthing point and is supplied with 4 x M6 nuts and washers as well as 1 x M6 Spring washer. The box has threaded mounting M5 holes and can accommodate an indexable mounting plate, which can be purchased separately if required.

The Flameproof Ex d Envirobox® is fully certified to SANS, EN and IECEx standards, including ATEX and UKCA for use in surface and underground mining applications (Ex db I/IIB+H2 T6..T5 Mb Gb, Ex tb IIIC T85..T100 Db) in Zones 1, 2, 21 & 22 and an ambient temperature range of -40°C to +55°C.

“Pratley’s goal was to produce the only direct-entry junction box that is corrosion resistant. The launch of the Flameproof Ex d Envirobox® marks another world-first product for the company,” Kruger notes.

For more information visit: www.pratleyelectrical.com
